Home-networking

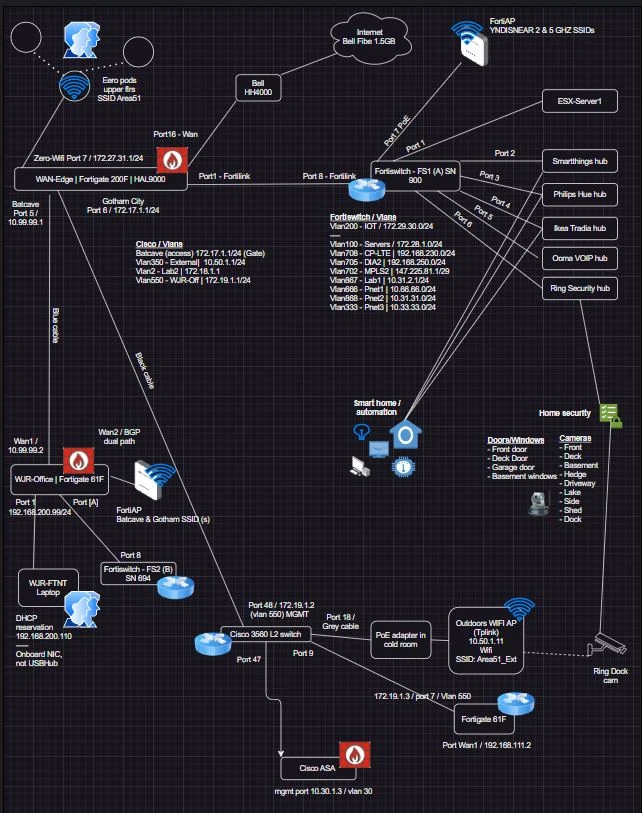

Never finished and often changed, the home network is where it all happens. Genetic experiments, alien technology testing, and good deals from BestBuy/Amazon form the basis for any Batcave infrastructure every super-hero needs to fight crime. Diagram below is my current setup, what’s in your home lab?

Mar 2024 – refresh of some elements and re-capture of main pieces.

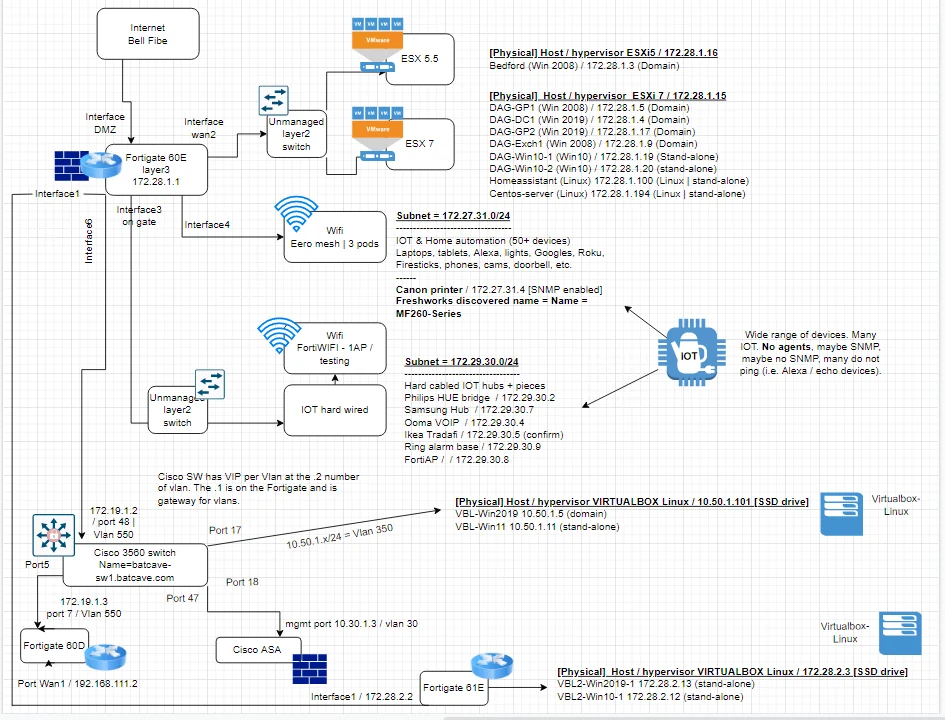

Old – pre 2024
